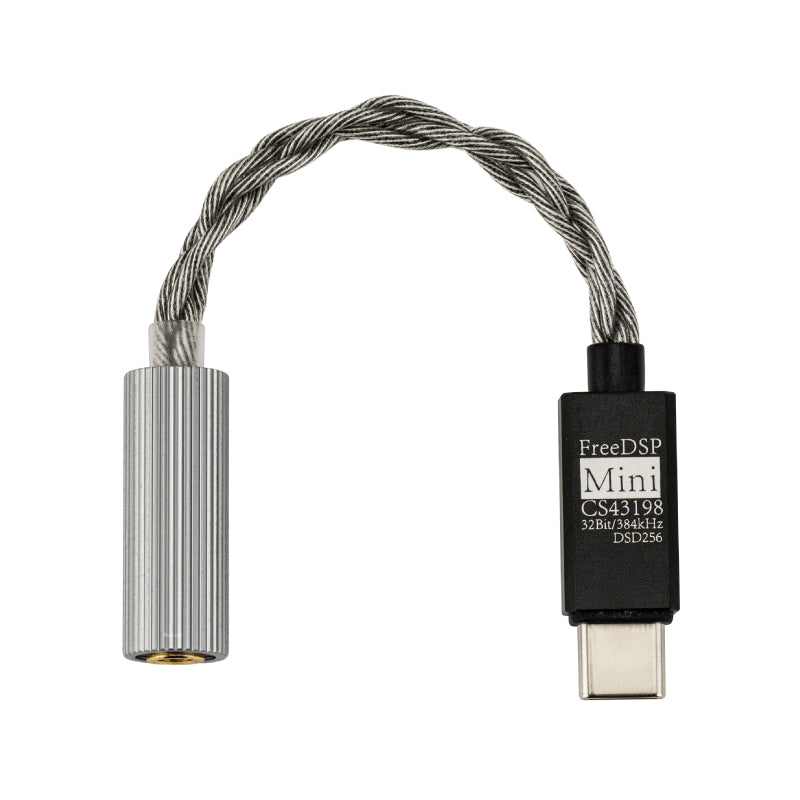

MOONDROP FreeDSP Mini Portable USB DAC & Headphone Amplifier CS43198 USB-C to 3.5mm

  • VendorMOONDROP

Description

  • Cirrus Logic CS43198 flagship DAC chip
  • PCM decoding up to 32-bit/384kHz and DSD256
  • Professional parametric EQ and DSP tuning
  • One-click automatic EQ configuration
  • Web-based and Android app tuning
  • Community tuning profile sharing and downloads
  • 127dB dynamic range
  • Ultra-low 0.00017% THD+N
  • Powerful 80mW + 80mW output at 16Ω
  • 3.5mm CTIA microphone support
  • Driver-free USB-C connectivity
  • Compatible with PCs, Android and iOS devices
  • Compact and portable DAC/AMP design

MOONDROP FreeDSP Mini Portable USB DAC & Headphone Amplifier CS43198 USB-C to 3.5mm

  • VendorMOONDROP
Product form

SKU: MDFREEDSPMINI
Barcode: 6972585502740

  • Curated tech gear from trusted global brands
  • Fast & reliable shipping from Australia
  • Backed by expert service & support
Partner pricing and availability

Log in with an approved Mastex reseller account to view pricing, stock and place an order.

Partner Login

Description

  • Cirrus Logic CS43198 flagship DAC chip
  • PCM decoding up to 32-bit/384kHz and DSD256
  • Professional parametric EQ and DSP tuning
  • One-click automatic EQ configuration
  • Web-based and Android app tuning
  • Community tuning profile sharing and downloads
  • 127dB dynamic range
  • Ultra-low 0.00017% THD+N
  • Powerful 80mW + 80mW output at 16Ω
  • 3.5mm CTIA microphone support
  • Driver-free USB-C connectivity
  • Compatible with PCs, Android and iOS devices
  • Compact and portable DAC/AMP design

FreeDSP Mini

The Second Generation Online Interactive DSP

CS43198 Flagship DAC 32-bit/384kHz PCM DSD256 Professional DSP Tuning 3.5mm CTIA Microphone USB-C

Earphones and mobile phone are not included.

Professional DSP

Second-Generation Online Interactive DSP

The updated MOONDROP app lets users apply preset sound profiles or customise a parametric equaliser through a more precise and user-friendly tuning interface.

Adjust filter type, frequency point, gain and Q value, then reference an extensive headphone frequency-response database during the tuning process.

Due to iOS permissions, app-based tuning is supported on Android. iOS users can use settings after they have been configured on an Android device.

MOONDROP app DSP presets and parametric EQ interface

Tuning Community

Built-In Tune Sharing and Downloading

Download tuning profiles created by other FreeDSP Mini and FreeDSP Pro users, then apply them directly to the FreeDSP Mini.

Professionals and music enthusiasts can create profiles for correcting headphone timbre, adapting different music styles and serving specific use cases, then upload and share their configurations with the community.

Submitted configurations are subject to approval. Shared profiles are displayed with the user’s ID.

MOONDROP tuning profile sharing and download community

Web Tuning

More Professional. More Accurate.

When app tuning is unavailable, FreeDSP Mini can be adjusted through the web-based Tuning Community.

The desktop interface provides detailed controls, a clearer profile library and convenient synchronisation between the website account, database and mobile app.

Use Microsoft Edge 135 or later, or Google Chrome 131 or later, to access the web tuning tool.

MOONDROP professional web tuning interface

Frequency Response Library

Continuously Updated for Easy Tuning

Browse a comprehensive library of headphone frequency-response curves and target curves.

Use them as a starting point, apply them directly or continue fine-tuning to match your preferred sound. New response curves are continually added to expand compatibility.

Headphone frequency-response library and automatic EQ

Automatic EQ

One-Button EQ Setting

The MOONDROP web tool and Android app update together. Select or upload an original response curve, choose a target response and let the system calculate the EQ parameters automatically.

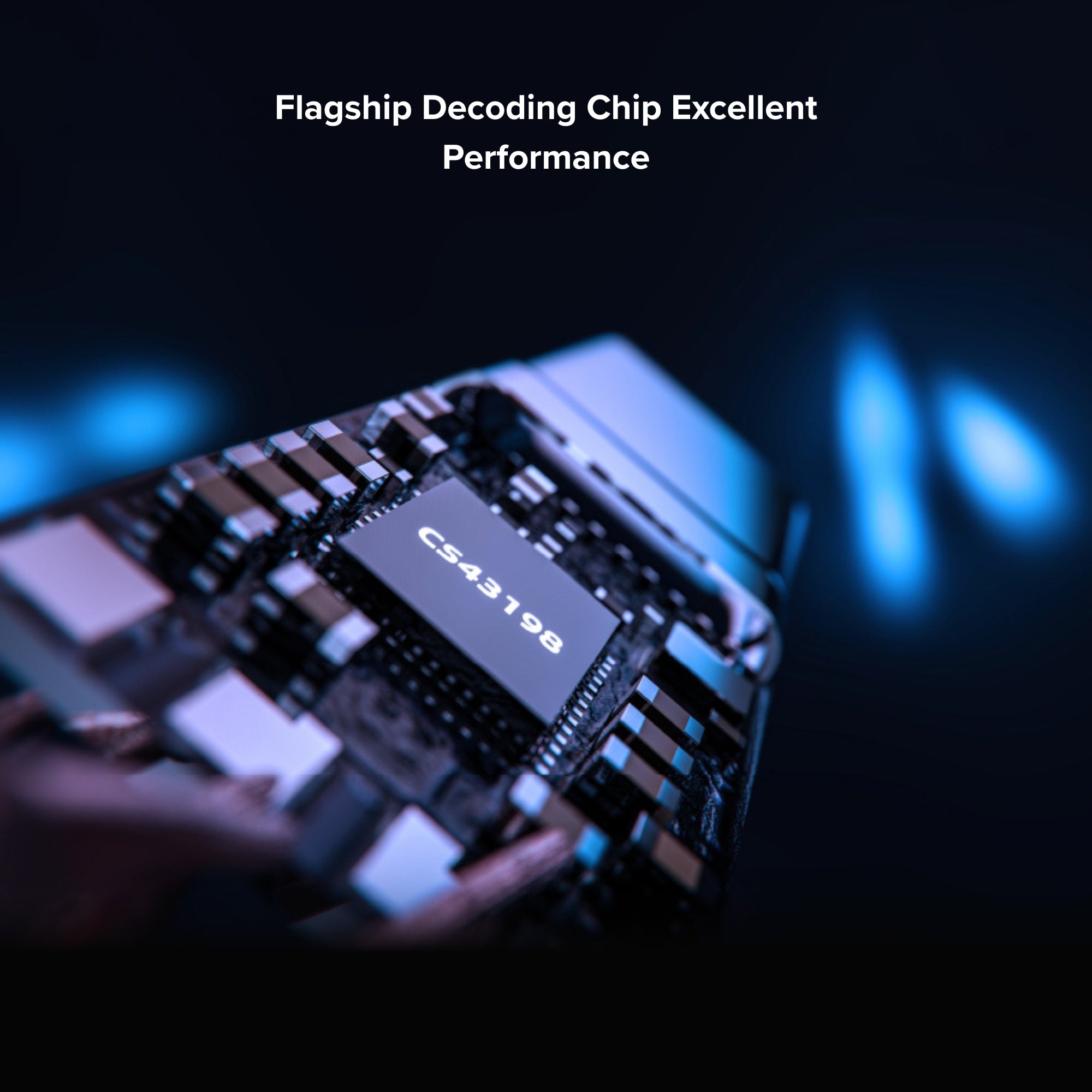

Flagship Decoder

Cirrus Logic CS43198 Performance

FreeDSP Mini uses the Cirrus Logic CS43198 flagship decoding chip for reference-level portable HiFi playback.

It supports PCM from 16-bit/44.1kHz up to 32-bit/384kHz, together with DSD256 decoding.

FreeDSP Mini CS43198 DAC performance

Measured Performance

Reference HiFi Sound. High-Output Performance.

A high-performance LDO-powered audio design delivers a dynamic range of up to 127dB, THD+N as low as 0.00017%, and powerful 80mW + 80mW output at 16Ω.

127dB Dynamic range, A-weighted at 1kHz
0.00017% THD+N, A-weighted at 1kHz
80 + 80mW Output at 16Ω, THD+N below 1%

Data provided by the MOONDROP R&D Centre using APX555 measurement equipment.

Microphone Support

CTIA Wire-Controlled Microphone

The 3.5mm four-pole output supports CTIA-standard in-line microphones.

Pair it with compatible earphones for calls, live streaming, gaming, karaoke and more.

FreeDSP Mini microphone support and USB-C connectivity

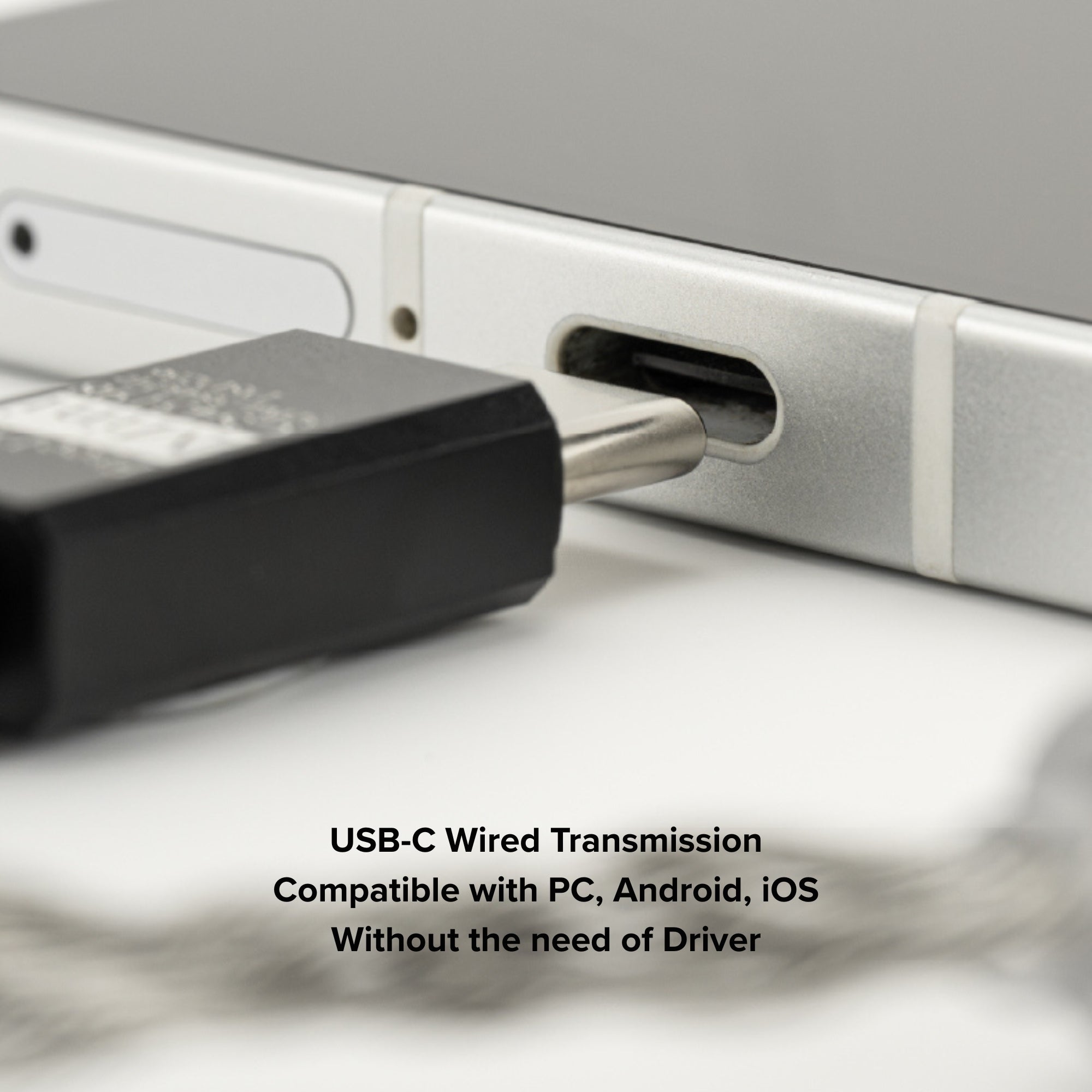

Driver-Free Connectivity

USB-C for PC, Android and iOS

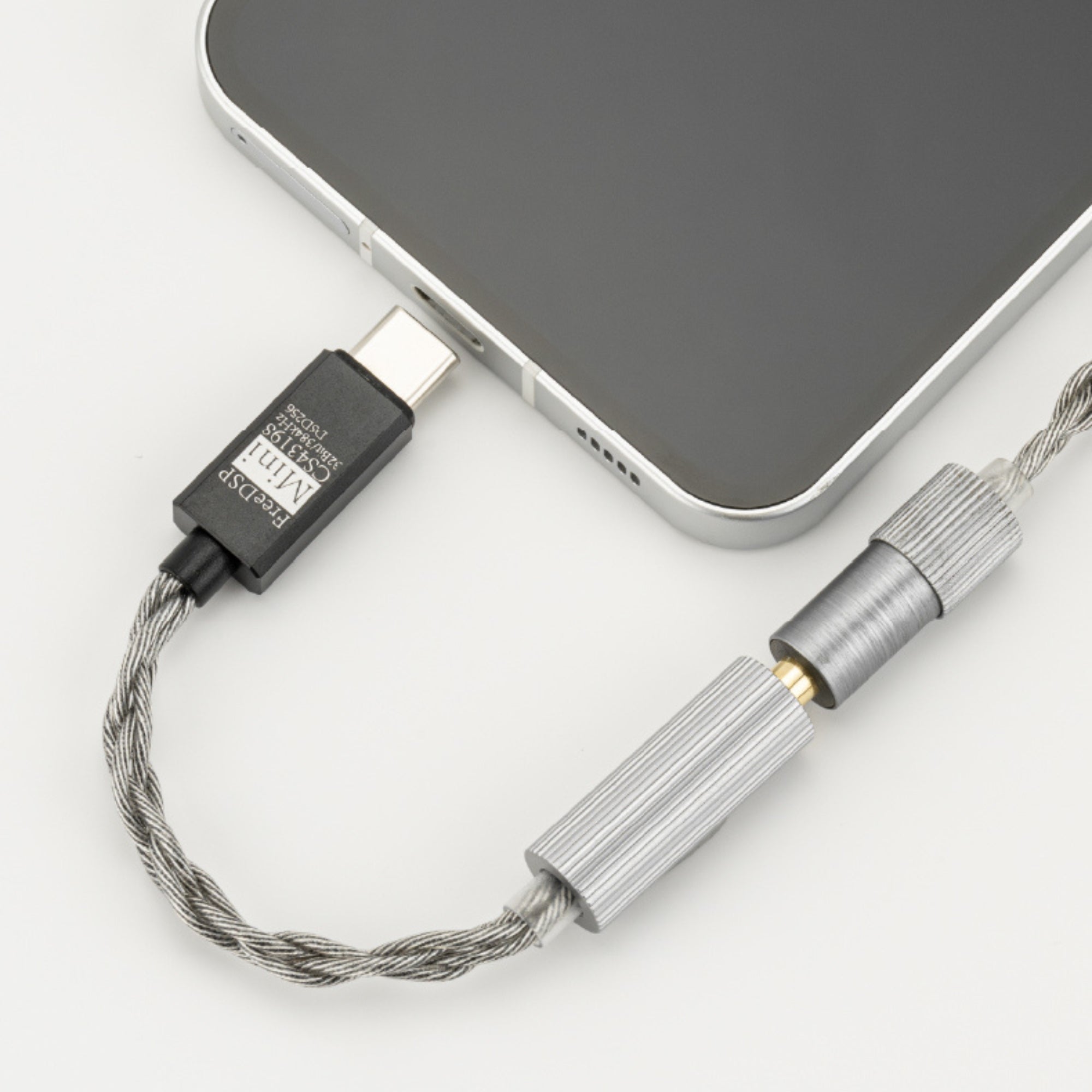

Connect FreeDSP Mini directly to compatible phones, computers and tablets through USB-C.

Wired digital transmission avoids Bluetooth delay and preserves audio quality without requiring a dedicated driver.

Technical Details

Product Information

Product model
MOONDROP FreeDSP Mini
Product type
HiFi miniature DAC & amplifier
DAC chip
Cirrus Logic CS43198
PCM decoding
16-bit/44.1kHz to 32-bit/384kHz
DSD decoding
Up to DSD256
Dynamic range
127dB @ 1kHz, A-weighted
THD+N
0.00017% @ 1kHz, A-weighted
Output amplitude
2Vrms @ 0dBFS
Output power
80mW + 80mW @ 16Ω, THD+N < 1%
Earphone jack
3.5mm 4-pin, SE + MIC / CTIA
Input plug
USB-C

Package Contents

1 × FreeDSP Mini · 1 × Guidance Card · 1 × Certificate
